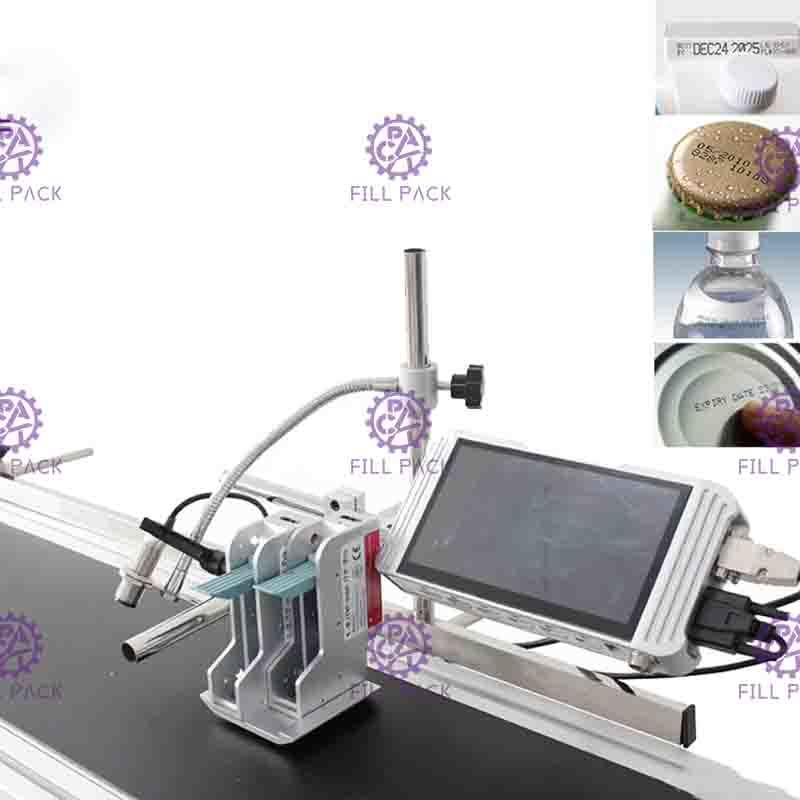

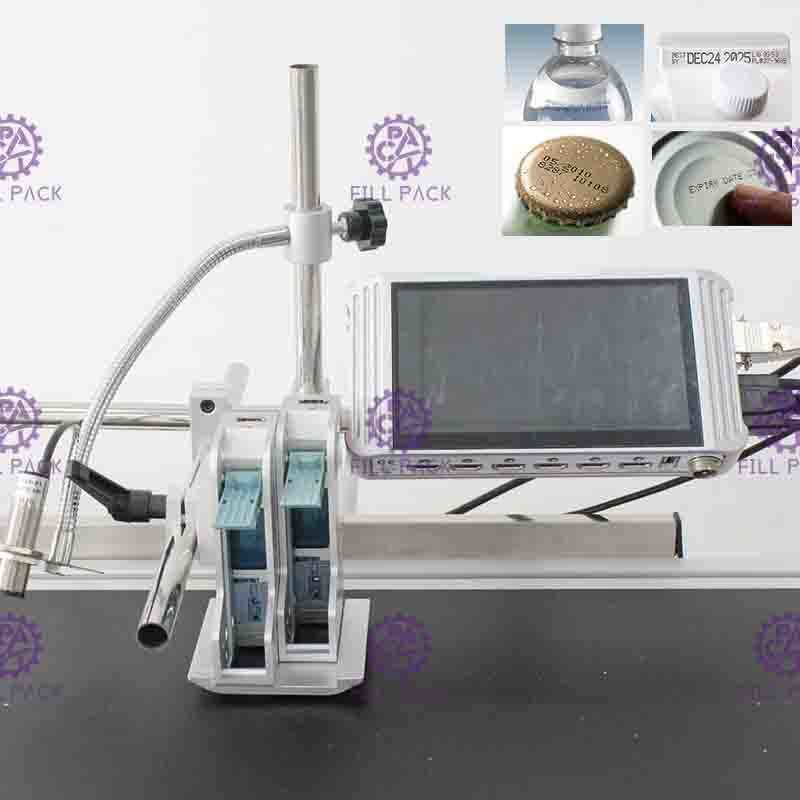

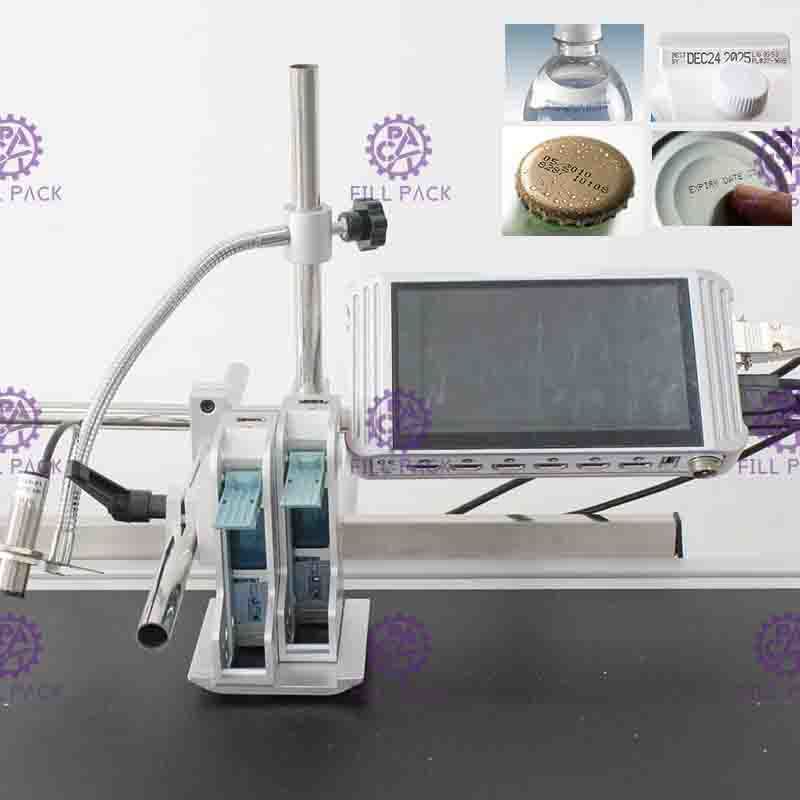

High Resolution Inkjet Coding Line / Unit for Bar Code Printing

Technical Specification

1)Inkjet printing precision: 200 DPI

2)Inkjet print fonts: high-definition inkjet print fonts ( print form)

3)Character: national Primary and Second Chinese character(more than 6000 Chinese characters), seven font (Song typeface,Regular script, Hollow, Bold, Clouds, New Song typeface, Bitmap font) to choose from, pinyin input method.

4)Inkjet print graphics: all sorts of trademark design can be printed, graphic transmission is not affected by length-to-width ratio and length.

5) The number of lines: one to fifteen lines of English Numbers or one to eight lines of Chinese characters can be printed, and the size of the word can be adjusted. This system is dual-purpose.

6) Character height: 1 mm ~ 18 mm high word font (1, 2, 3, 4, 5, 6, 7, 8, 10, 12, 15, 18 mm) can be printed

7) Inkjet print distance: nozzle to printing objects 5-10 mm

8) Automatic inkjet printing: date, time, batch number, class and serial number, etc

9) Storage information: 100 messages, 100 graphics can be stored

10) Message length: each message can be up to 200 characters

Application

Such as mobile phone screen, Beverages cap , food packaging bags,plastics-steel doors and windows, aluminum alloy, batteries, plastic pipe, steel plate, circuit boards, chip, woven bags, eggs, brake pad, phone housings, cartons, motors, transformers, inside dishes of water meter, gypsum board, PCB circuit board, outer packing of explosive, etc.

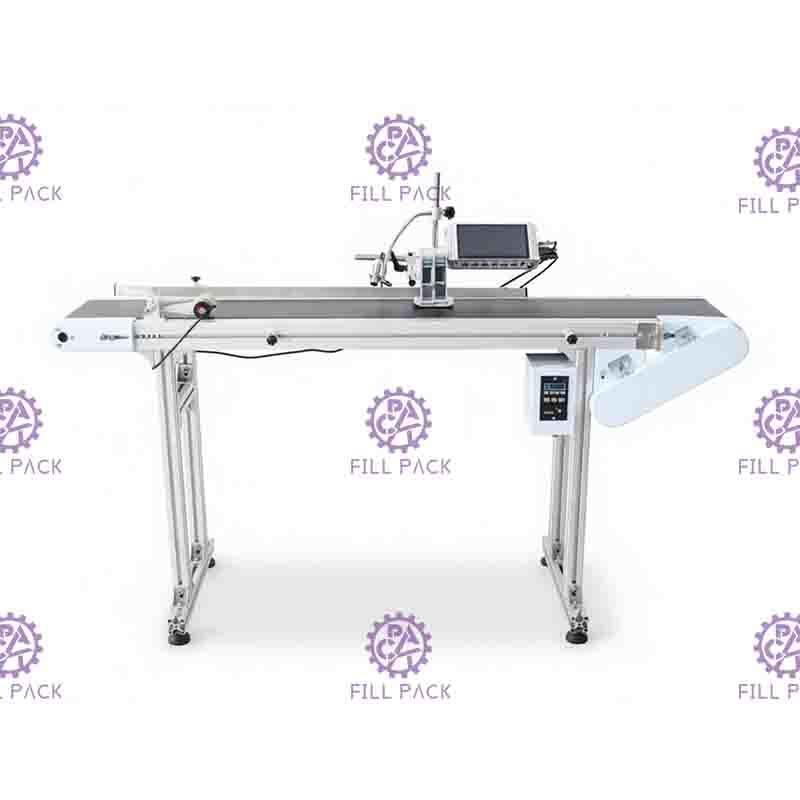

Material for inkjet coding line / unit

The surface of metal, plastic, wood, aluminum foil, cartons and building materials and so on.
